3 doors remote

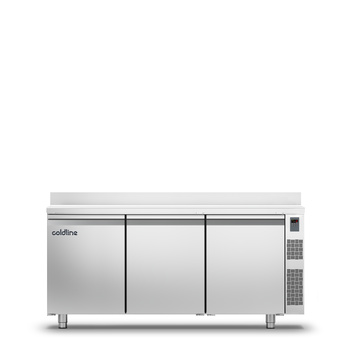

Pastry EN60x40 counter 3 doors
TA17/1BJR-710
Pastry EN60x40 counter 3 doors
-15°-22°C
top with splashback h. 710 mm
remote
-15°-22°C
top with splashback h. 710 mm
remote
Features
- Standard equipment 12 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 607 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 1795×800×950 mm
- Packing dimensions 2100×900×998 mm
- Net / gross weight 150 Kg / 160 Kg
- Net / gross volume 382 lt / 607 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 945W - 4,3A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth EN 3DR h 100 mm
- Removable plinth EN 3DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 3 doors
TP17/1BJR-710
Pastry EN60x40 counter 3 doors
-15°-22°C
with top h. 710 mm
remote
-15°-22°C
with top h. 710 mm
remote
Features
- Standard equipment 12 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 607 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 1795×800×850 mm
- Packing dimensions 2100×900×998 mm
- Net / gross weight 145 Kg / 155 Kg
- Net / gross volume 382 lt / 607 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 945W - 4,3A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth EN 3DR h 100 mm
- Removable plinth EN 3DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 3 doors
TS17/1BJR-710
Pastry EN60x40 counter 3 doors
-15°-22°C
without top h. 710 mm
remote
-15°-22°C
without top h. 710 mm
remote
Features
- Standard equipment 12 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 607 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 710 mm
- Valve Supplied standard with solenoid
- Dimensions 1795×780×810 mm
- Packing dimensions 2100×900×998 mm
- Net / gross weight 115 Kg / 125 Kg
- Net / gross volume 382 lt / 607 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 945W - 4,3A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth EN 3DR h 100 mm
- Removable plinth EN 3DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 3 doors
TA17/1BJR-760
Pastry EN60x40 counter 3 doors
-15°-22°C
top with splashback h. 760 mm
remote
-15°-22°C
top with splashback h. 760 mm
remote
Features
- Standard equipment 12 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 658 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 1795×800×1000 mm
- Packing dimensions 2100×900×998 mm
- Net / gross weight 159 Kg / 169 Kg
- Net / gross volume 418 lt / 658 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 945W - 4,3A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth EN 3DR h 100 mm
- Removable plinth EN 3DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 3 doors
TP17/1BJR-760
Pastry EN60x40 counter 3 doors
-15°-22°C
with top h. 760 mm
remote
-15°-22°C
with top h. 760 mm
remote
Features
- Standard equipment 12 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 658 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 1795×800×900 mm
- Packing dimensions 2100×900×998 mm
- Net / gross weight 154 Kg / 164 Kg
- Net / gross volume 418 lt / 658 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 945W - 4,3A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth EN 3DR h 100 mm
- Removable plinth EN 3DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 3 doors
TS17/1BJR-760
Pastry EN60x40 counter 3 doors
-15°-22°C
without top h. 760 mm
remote
-15°-22°C
without top h. 760 mm
remote
Features
- Standard equipment 12 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 658 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 760 mm
- Valve Supplied standard with solenoid
- Dimensions 1795×780×860 mm
- Packing dimensions 2100×900×998 mm
- Net / gross weight 124 Kg / 134 Kg
- Net / gross volume 418 lt / 658 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 945W - 4,3A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth EN 3DR h 100 mm
- Removable plinth EN 3DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 3 doors
TA17/1BJR-660
Pastry EN60x40 counter 3 doors
-15°-22°C
top with splashback h. 660 mm
remote
-15°-22°C
top with splashback h. 660 mm
remote
Features
- Standard equipment 12 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top and splashback
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 557 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 660 mm
- Valve Supplied standard with solenoid
- Dimensions 1795×800×900 mm
- Packing dimensions 2100×900×998 mm
- Net / gross weight 141 Kg / 151 Kg
- Net / gross volume 346 lt / 557 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 945W - 4,3A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth EN 3DR h 100 mm
- Removable plinth EN 3DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 3 doors
TP17/1BJR-660
Pastry EN60x40 counter 3 doors
-15°-22°C
with top h. 660 mm
remote
-15°-22°C
with top h. 660 mm
remote
Features
- Standard equipment 12 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top With top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 557 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 660 mm
- Valve Supplied standard with solenoid
- Dimensions 1795×800×800 mm
- Packing dimensions 2100×900×998 mm
- Net / gross weight 136 Kg / 146 Kg
- Net / gross volume 346 lt / 557 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 945W - 4,3A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth EN 3DR h 100 mm
- Removable plinth EN 3DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
Pastry EN60x40 counter 3 doors
TS17/1BJR-660
Pastry EN60x40 counter 3 doors
-15°-22°C
without top h. 660 mm
remote
-15°-22°C
without top h. 660 mm
remote
Features
- Standard equipment 12 slides EN60x40
- Control Electronic, display flush with the panel
- Doors 3 doors, self-closing, reversible with 105° stop
- Door gasket Magnetic, triple chamber and easily replaceable
- Insulation 60 mm thickness - CFC/HCFC free
- Exterior/interior finishing Exterior interior and back in AISI 304 stainless steel. Base in colaminated steel.
- Inner corners Rounded for easy cleaning and ensuring maximum hygiene
- Handle Stainless steel AISI 304, 2 mm thick
- Racks and slides Stainless steel AISI 304
- Top Without top
- Feets AISI 304 stainless steel adjustable h 100/150 mm
Constructive Data
- Gross capacity 557 lt
- Temperature range -15°-22°C
- Refrigerant unit remote
- Cooling gas R452a (GWP=2.141)
- Defrost Electric
- Body height 660 mm
- Valve Supplied standard with solenoid
- Dimensions 1795×780×760 mm
- Packing dimensions 2100×900×998 mm
- Net / gross weight 106 Kg / 116 Kg
- Net / gross volume 346 lt / 557 lt
- Voltage 220-240 V - 50-60 Hz
- Total rate 945W - 4,3A
- Cooling capacity 540 W*
- * Evap. -30°C Cond. +55°C
- Pipe delivery Ø 3/8"
- Pipe suction Ø 3/8"
Accessories
- Remote condensing unit NT2178GK
- Adjustable feet h 145/195 mm
- 4 Swivel and brake castors h 128 mm
- Aluminium coated backingan EN60x40 h 20 mm
- Stainless steel shelf EN60x40
- Plastic coated shelf EN60x40
- Pair of type L slides 605 mm
- Serial interface, RS485 cable
- Cosmo cable connection kit
- Cosmo wifi connection kit
- Removable plinth EN 3DR h 100 mm
- Removable plinth EN 3DR h 150 mm
Variants
- Drawers 1/2
- Drawers 1/3
- Drawers 1/3 + 2/3
- Technical compartment on the left
- Common technical compartment
- Counters without a technical compartment
- Lock with key for drawer 1/2
- Lock with key for drawer 1/3
- Lock with key for drawer 1/3 + 2/3
- RAL customisable colouring
- Predisposition for connection to CO2 remote control unit
- Alimentazione frequenza 60Hz
- Other special voltage
- Internal hygiene H3
- Granite flat worktop
- Granite worktop with splashback
